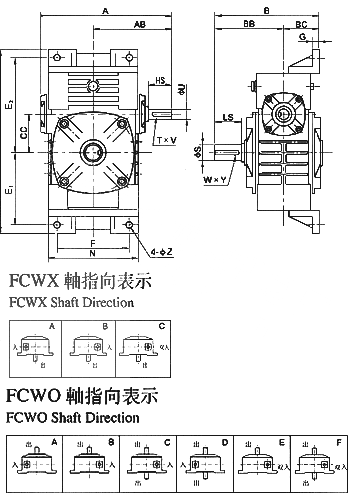

Size | Ratio | A | AB | B | BB | BC | CC | E1 | E2 | F | M | N |
40 | 1/5 | 152 | 90 | 123 | 78 | 45 | 40 | 72 | 97 | 70 | 195 | 96 |
50 | 175 | 105 | 145 | 95 | 50 | 50 | 90 | 110 | 90 | 225 | 115 | |
60 | 195 | 120 | 165 | 110 | 55 | 60 | 102 | 129 | 100 | 257 | 126 | |
70 | 234 | 140 | 195 | 130 | 65 | 70 | 120 | 155 | 120 | 305 | 155 | |
80 | 264 | 160 | 210 | 140 | 70 | 80 | 140 | 180 | 140 | 350 | 174 | |
100 | 300 | 178 | 253 | 163 | 90 | 100 | 165 | 215 | 190 | 410 | 224 | |
120 | 385 | 230 | 285 | 185 | 100 | 120 | 195 | 255 | 220 | 495 | 264 | |
135 | 435 | 260 | 320 | 210 | 110 | 135 | 230 | 285 | 260 | 560 | 304 | |
155 | 494 | 300 | 392 | 252 | 140 | 155 | 250 | 305 | 280 | 605 | 330 | |
175 | 548 | 325 | 412 | 262 | 150 | 175 | 273 | 348 | 320 | 675 | 370 | |
200 | 594 | 350 | 480 | 305 | 175 | 200 | 305 | 390 | 370 | 749 | 424 |
Size | G | Z | Input Shaft | Output Shaft | Weight | ||||
HS | U | T×V | LS | S | W×Y | ||||
40 | 10 | 9 | 25 | 12 | 4×2.5 | 28 | 14 | 5×3 | 4.2 |
50 | 14 | 11 | 30 | 12 | 4×2.5 | 40 | 17 | 5×3 | 6.5 |
60 | 15 | 11 | 40 | 15 | 5×3 | 50 | 22 | 7×4 | 9 |
70 | 20 | 15 | 40 | 18 | 5×3 | 60 | 28 | 7×4 | 14 |
80 | 20 | 15 | 50 | 22 | 7×4 | 65 | 32 | 10×4.5 | 21 |
100 | 20 | 15 | 50 | 25 | 7×4 | 75 | 38 | 10×4.5 | 33 |
120 | 25 | 18 | 65 | 30 | 7×4 | 85 | 45 | 12×4.5 | 51 |
135 | 30 | 18 | 75 | 35 | 10×4.5 | 95 | 55 | 15×5 | 75 |
155 | 35 | 20 | 85 | 40 | 10×4.5 | 110 | 60 | 15×5 | 115 |
175 | 40 | 20 | 85 | 45 | 12×4.5 | 110 | 65 | 18×6 | 152 |
200 | 42 | 22 | 95 | 50 | 12×4.5 | 125 | 70 | 20×7 | 226 |
